Dips In The Roadway. Dip line hires stock photography and images Alamy While an insloped, outsloped, or crowned road surface can disperse runoff, their function can be reduced by wheel rutting Roadway dips modify the road drainage by altering the template and allowing surface flows to frequently disperse across the road

Frequently installed rolling dips ensure the most reliable form of road drainage with the least amount of maintenance in the. collect flowing water from the road surface and ditches and direct it across the road to a stable outlet

Dip Sign Construction Grade Road Sign The Sign Store NM

Broad-Based Dip - A small increase in road elevation that directs all road drainage across the road to an outlet Rolling dips (Figure 9.3) are the most reliable cross drains for low-standard roads The dip-drain should be broadly angled with a cross slope of 5-8%, steep enough to flush away accumulating sediments and be "self-cleaning"

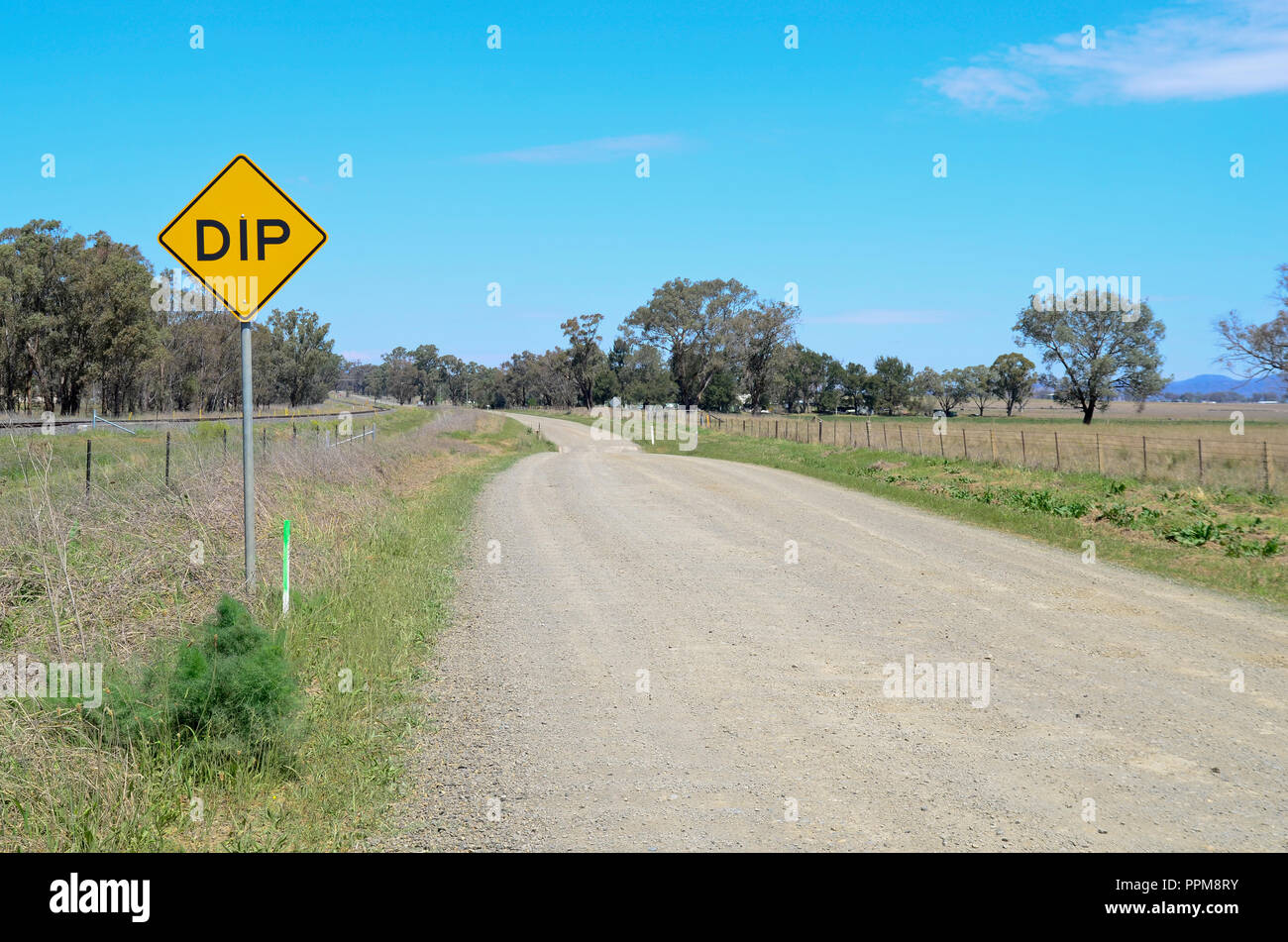

Dip road sign Stock Photo Alamy. A variety of surface cross drains that are used on forest roads are described, including cross drain dips, waterbars, and open top culverts The dip-drain should be broadly angled with a cross slope of 5-8%, steep enough to flush away accumulating sediments and be "self-cleaning"

Sketch of a typical rolling dip on a logging road. (Adapted from... Download Scientific Diagram. Factors to consider when designing surface cross drains for forest roads are discussed, including location, geometry of dips, orientation, and erosion control. They collect surface runoff from the roadway and/or road ditch and direct the flow across and away from the roadway
